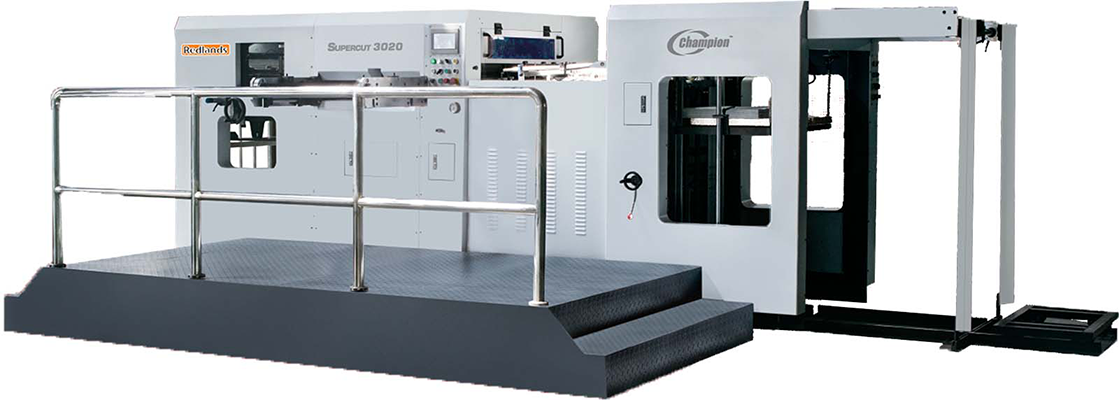

High Speed Automatic Die Cutter SUPERCUT 3020
features
- Zero Backlash Index Cam Drive -Korea
- high grade die punching Hammer - korea
- Gripper Bar Chain - Germany
- Pnuematic Brake Clutch - italy
- Quick Change Pnuematic Chase Lock
- Non Stop Delivery System facilitates on the run paper stack removal for continuos delivery
- Electronical Control Systems -Japan
- Electrical Components Schneider Electric
- Dual Speed Reduction Motor Imported from Taiwan for long life and high torsion
Specification
| Model | : SUPERCUT 3020 |
| maximum sheet size | : 810X610mm |
| minimum sheet size | 320X230mm |
| maximum die cutting size | 790X590mm |
| gripper margin | 8-16 mm |
| paper stock range | 0.1-4mm |
| max. die cutting precision | <= 0.1mm |
| max. die cutting force | 260 tons |
| max. die cutting speed | 7500 sheets per hour |
| max. feeder pile height | 1400 mm |
| max.delivery pile height | 1200 mm |
| Total Connected Power | 14.5kW |
| Operating Power | 11kW |
