Champion Envelope Making Machine-CF 510

ENVELOPE CHAMPION CF 400

CF 250

features

  • T5″ Monochrome-LC-Display
  • Low-profile keyboard with easy-to-understand symbols
  • 198 program memory locations
  • AirStop
  • Cutting cycle shown with symbols
  • Program information with plain text
  • Menu-driven knife change
  • Programming during cutting
  • Block programming available
  • Format tables
  • Programmable jogging mark
  • Clamping time before cutting
  • Programmable ejector
  • Protect program
  • Lubrication interval signal

Specification

Model : Champion CF-510
Max. working Speed : 11000pcs/h

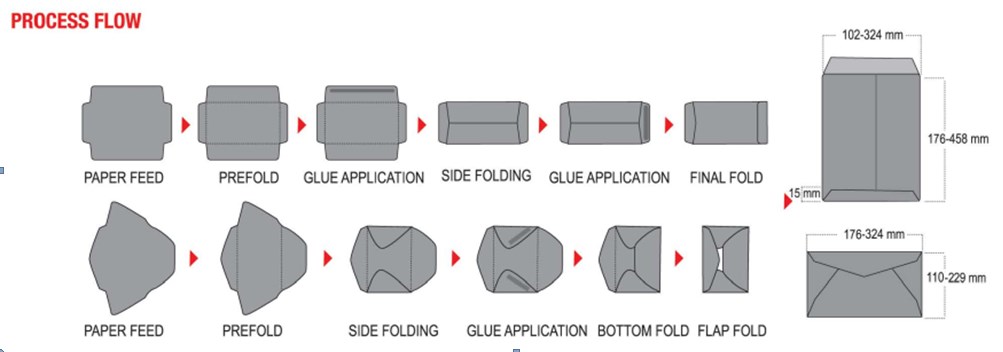

Processing envelope specification
Pocket type (No.1-No.10)
Min 176*102mm
Max 324*458mm
Wallet type (No.2-No.9) Min Size 176*110mm
Max Size 324*229mm
Motor power 2.2KW
Air pump power 3.0KW
Machine weight 2500kg
External dimension 4300*1100*1260mm?L*W*H?
